The "Invisible Gatekeeper" of Cleanrooms: Pass Box
author: HKJH
2026-09-14
Anyone engaged in cleanroom, clean laboratory, pharmaceutical and electronic purification projects knows that the biggest hazard in clean areas is not dust, but air convection and cross-contamination caused by frequent door openings.
In many workshops, failure to meet cleanliness standards, unstable pressure differentials, or excessive microorganisms in sampling tests often stem not from air conditioning or fresh air systems, but from non-standard material transfer procedures.
The pass box serves as the critical "material safety transfer station" between the clean area and the non-clean environment.
01 Pass Box: The First Physical Barrier of Cleanrooms

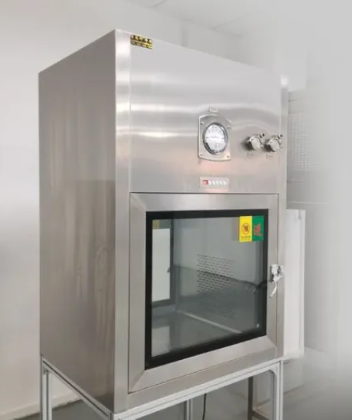

As special auxiliary purification equipment for cleanrooms, pass boxes are mainly used for transferring small items between clean and non-clean areas, or between high-cleanliness and low-cleanliness zones.
Its core value is simple yet vital:
- Reduce the frequency of main door openings to prevent pressure differential imbalance in clean areas
- Adopt an interlocking double-door structure to block direct air convection between inside and outside
- Equipped with disinfection and purification functions to lower risks of particulate and microbial contamination carried on material surfaces
- Prevent cross-contamination and safeguard the cleanliness standard of workshops
Simply put: Personnel use main doors; materials use pass boxes. Every avoided opening of the main door means less fluctuation of the cleanroom system.
02 Common Types of Pass Boxes — Avoid Pitfalls in Engineering Selection
Different workshop scenarios require different pass box models to match corresponding cleanliness grades:
-
Mechanical Interlock Pass Box With mechanical interlock to prevent both doors from opening simultaneously. Cost-effective and versatile, suitable for general electronics, packaging and ordinary clean workshops.
-
Electronic Interlock Pass Box Electronic sensor interlock with superior sealing performance and low failure rate. Ideal for high-specification scenarios such as pharmaceutical, biological laboratory and medical clean areas.
-
Air Shower Pass Box Equipped with FFU high-efficiency air supply and air shower blowing function to blow off loose dust on material surfaces. A must-have for high-cleanliness workshops, precision electronics and aseptic workshops.
Mainstream standard configurations feature stainless steel inner chamber, tempered viewing window and rounded corner seamless design, which is easy to wipe and dust-retaining free, fully complying with GMP disinfection requirements.
03 Standard Operating Mnemonic — Compliance Ensures Effectiveness
Many workshops still fail inspection even with pass boxes installed, due entirely to non-standard operations. Follow this simplified compliance workflow: Close → Load → Disinfect → Reclose → Quick loading & retrieval
Before transfer: Ensure both doors are fully closed. Open outer door: Place materials inside and close & lock the door immediately. Disinfection & standing: Turn on UV sterilization and keep static for 20–30 minutes. Retrieve from inner side: Confirm full sealing, open inner door to take materials and close door right away.
Prohibited operations: Opening both doors at the same time, leaving doors open for extended periods, storing sundries.
04 Daily Maintenance Tips to Extend Service Life
- Wipe the inner chamber, viewing glass and sealing gaskets daily, free of dust and stains.
- Periodically inspect interlock function, UV lamp status and sealing tightness.
- No personal belongings or idle materials are allowed; keep the channel dedicated.
- Replace UV lamps and HEPA filters regularly to maintain purification performance.
Conclusion
A qualified cleanroom cannot meet standards relying on a single piece of equipment. It requires dual closed-loop management: supporting equipment plus standardized operation. The compact pass box, though seemingly insignificant, acts as a key line of defense to maintain stable cleanliness, stabilize pressure differentials and eliminate cross-contamination in clean workshops. Proper model selection, standardized operation and regular maintenance will keep your cleanroom consistently compliant and avoid acceptance risks.
